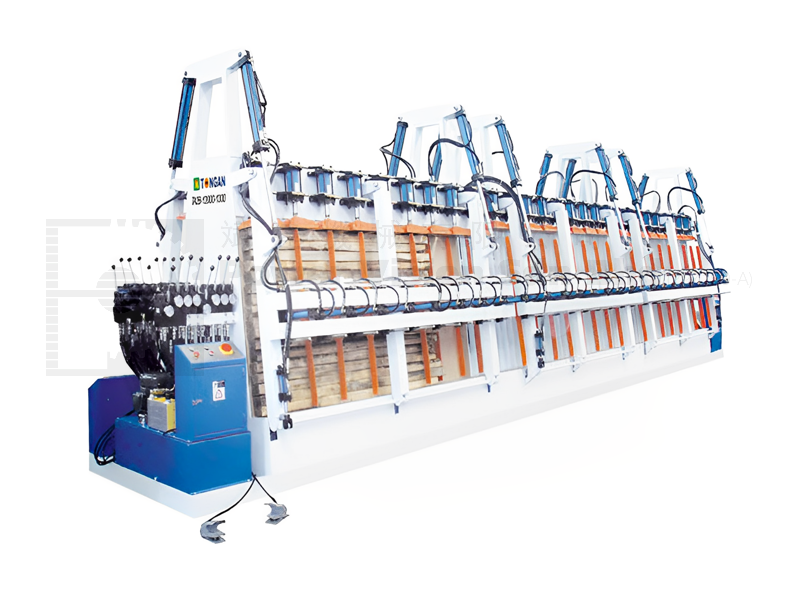

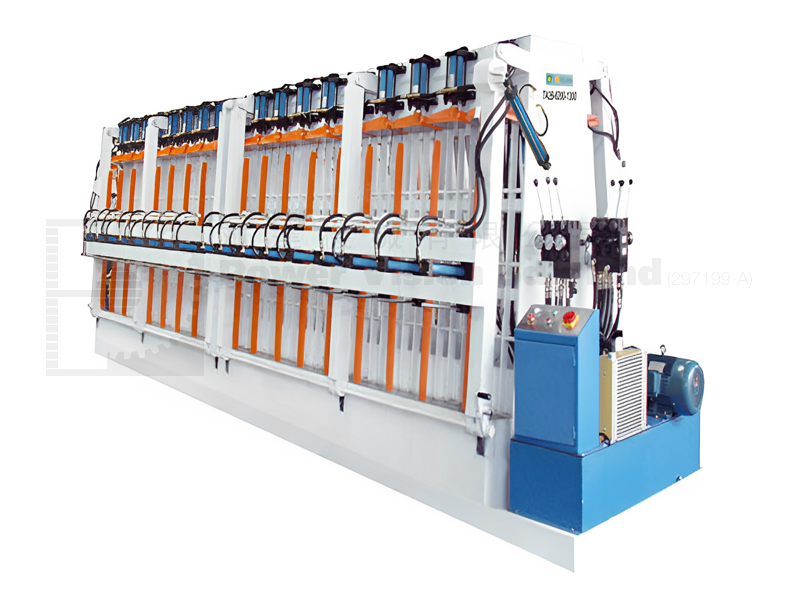

Two-side rotary hydraulic composer (Tailor-made)

Two-side rotary hydraulic composer (Tailor-made)

P016

Product Description


Two-side rotary hydraulic composer   Two-side rotary hydraulic composer   Two-side rotary hydraulic composer

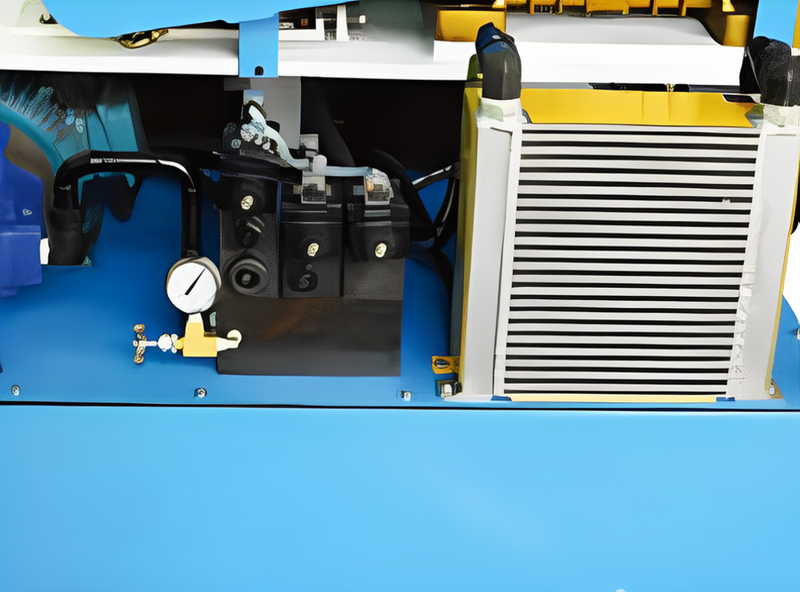

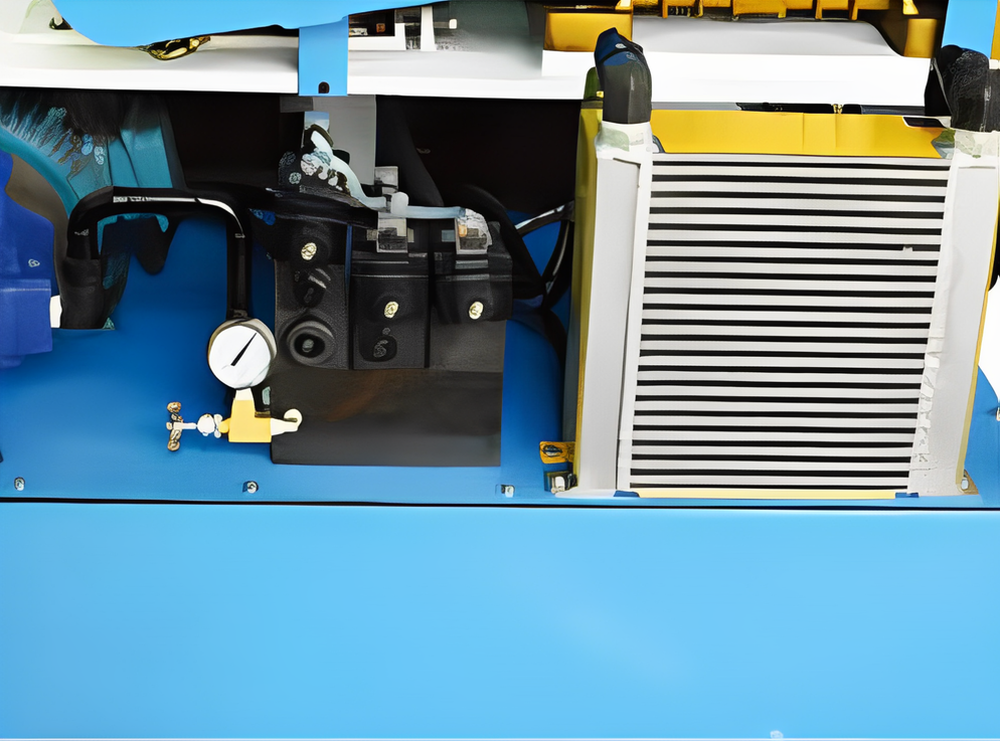

Imported hydraulic system

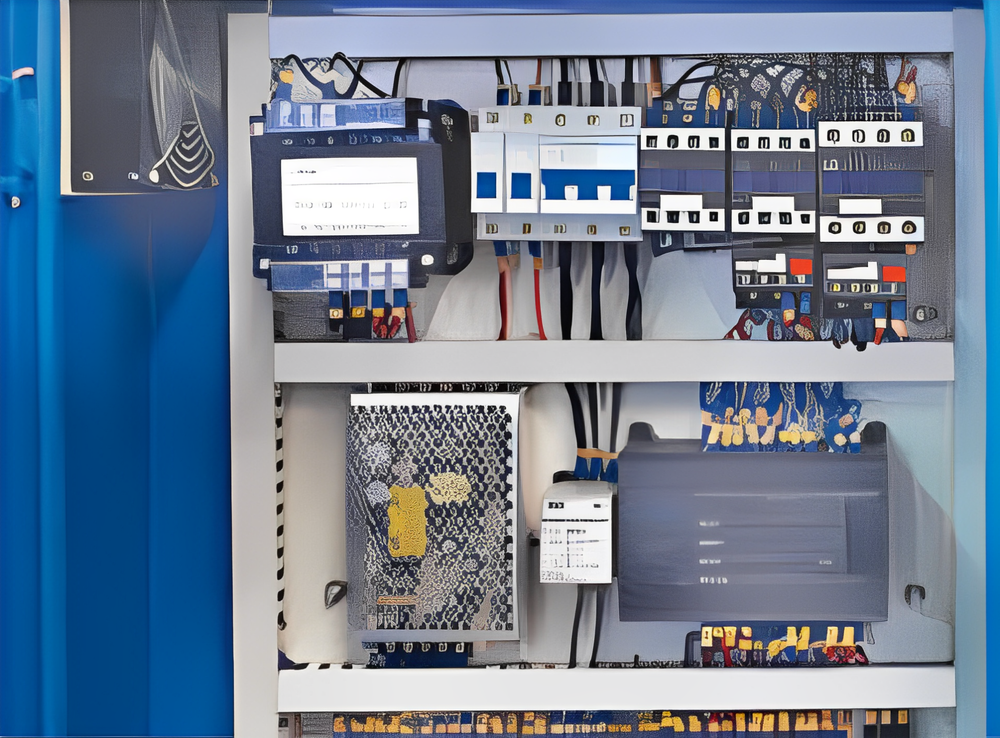

 		   PLC Control
 		   Protection device for
automatic supported rotating

Two-side rotary hydraulic composer

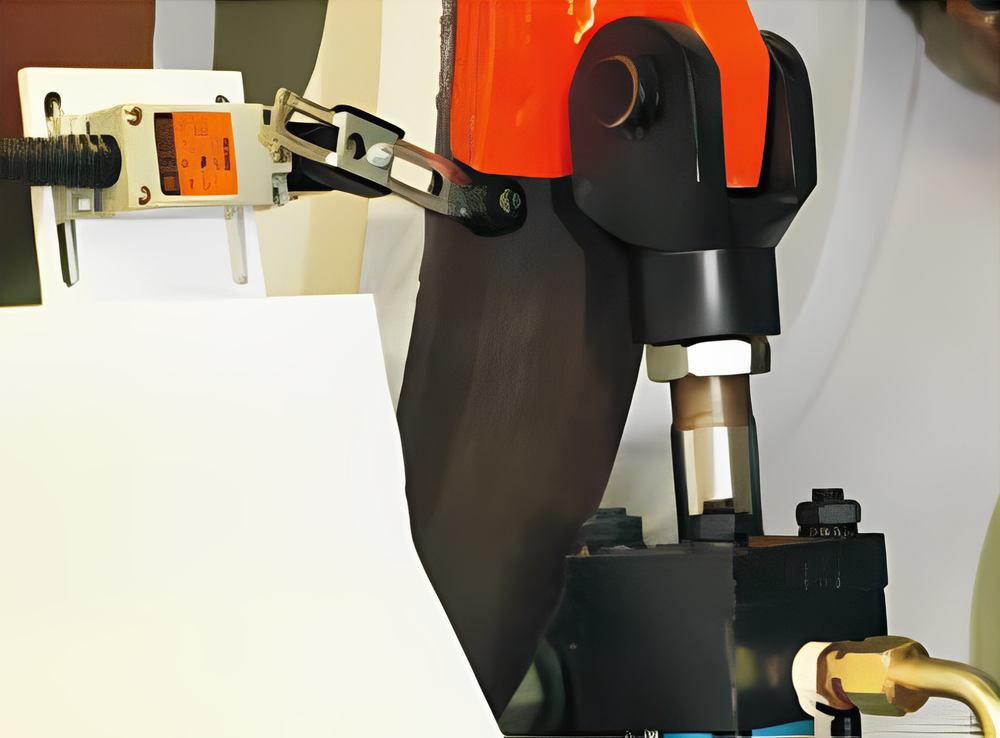

Protection device for automatic brake

Max.clamping length 12000mm
Max.clamping width 1300mm
Max.clamping thinkness 200mm

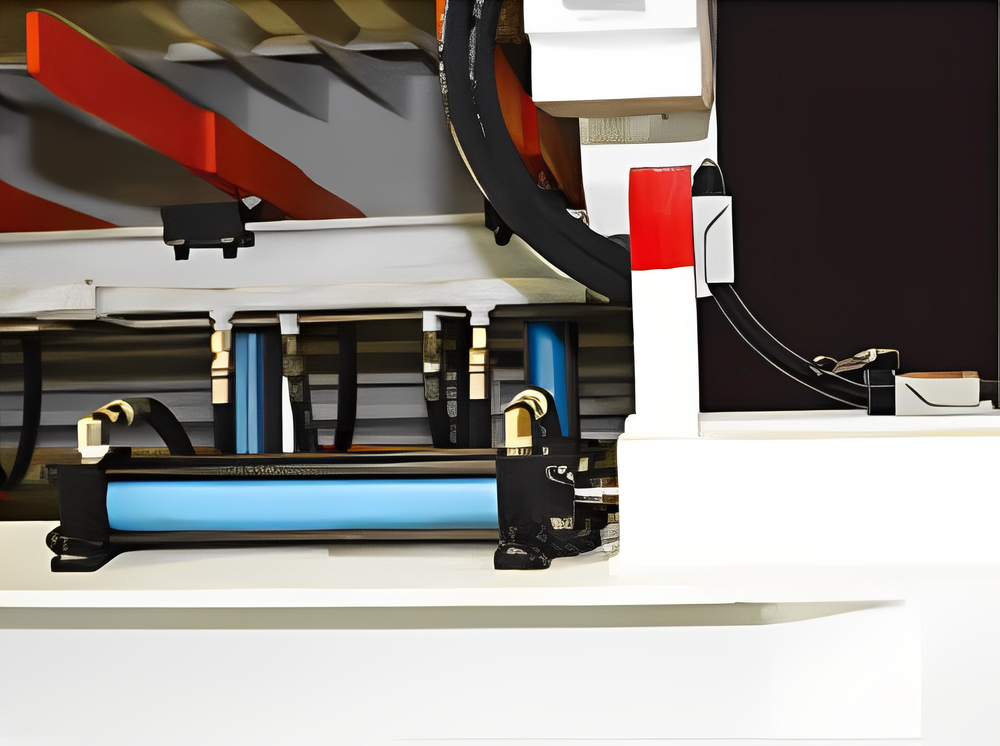

Up press cylinder 36pcs
Mid press cylinder 36pcs
Side press cylinder 12pcs
Up press max pressure 7t × 36/2
Motor power 5.5kW
Overall dimension 13000 × 2150 × 2250mm
