Short-cycle Lamination Hot Press A

Short-cycle Lamination Hot Press A

P018

Product Description

  • Simpleness operation: PLC automatic control all the procedure
  • High working efficiency: Electrical hating device consuming low power but can make high temperature: up and low running quickly, short pressing time, it is safety and reliable.
  • Automatic feeding timber, avoided that manual board arrangement to made any possible disadvantages such as timber overlap, clamping not anastomose or any crack ect.

Short-cycle Lamination Hot Press A   Short-cycle Lamination Hot Press A   Short-cycle Lamination Hot Press A

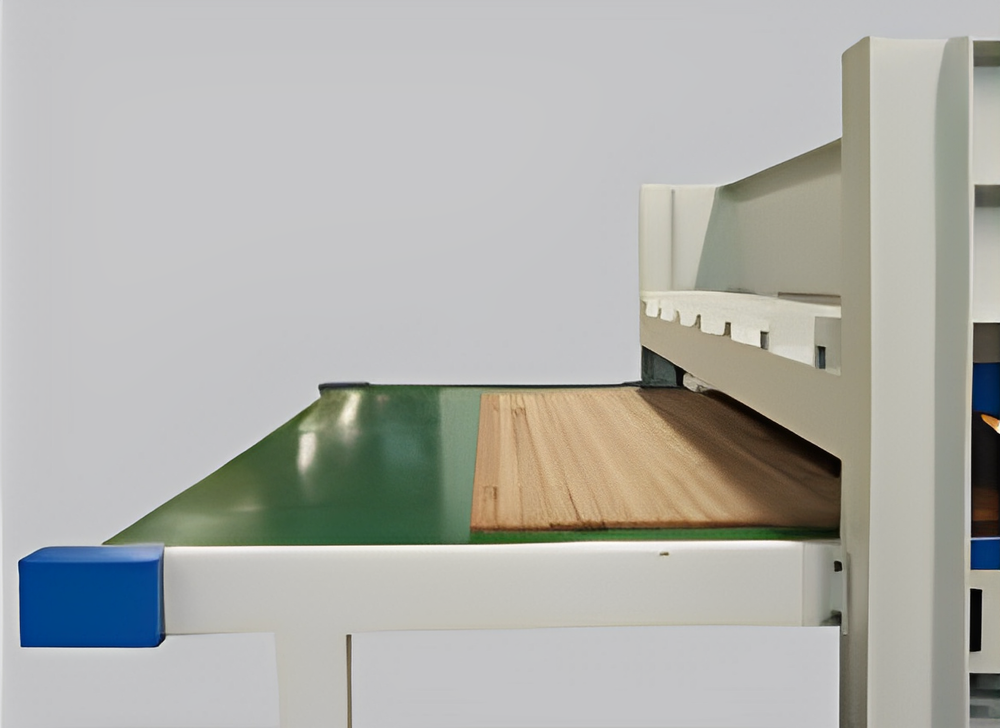

Automatic gluing   Automatic board arragement   Clamping function

Short-cycle Lamination Hot Press A   Short-cycle Lamination Hot Press A   Short-cycle Lamination Hot Press A

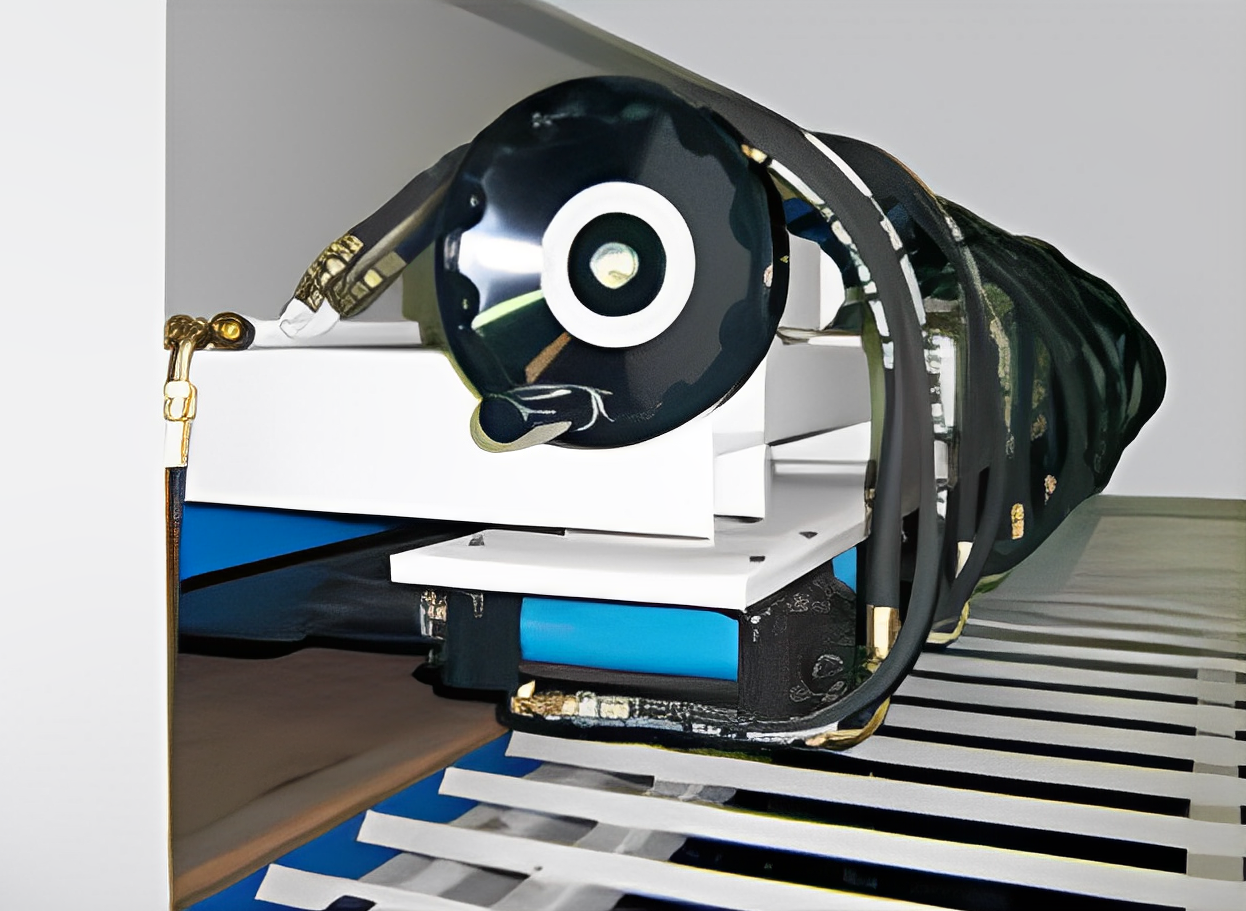

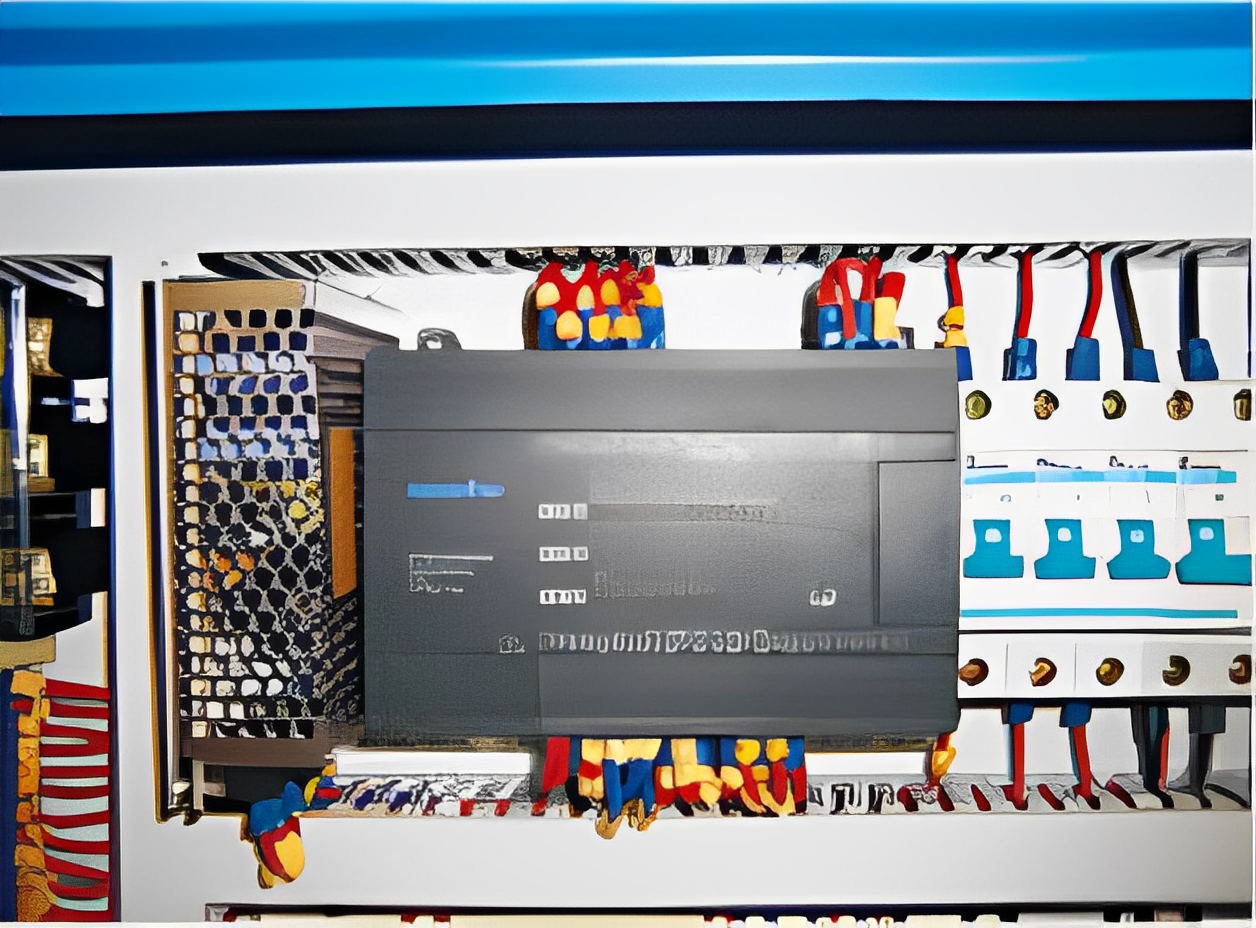

Toshiba high temperature pump heating system   Automatic out-feed   PLC control system

Worktable Dimension 3000 × 1600mm
Platnes Sepcification 3000 × 1600 × 52mm
Working Pressure 200T (4.2kg/cm²)
Q.ty of oil cylinder & IDA MainΦ125 × 8 pcs
ViceΦ80 × 2 pcs
Closing Speed 20 - 60mm/s
Feeding Speed 20m/min
In Feed & Out-Feed Direction From the front side (3000mm)
Heating Method Exothermic Pipe Heating Cycle Heating with Heating Oil
Heating Power 36kW
Max.Temperature 120℃
Installed Power 12kW
Overall Dimension 6000 × 4300 × 2500mm
